TAL Series Industrial Linear Actuator
TAL Series Industrial Linear Actuator

TAL Series - 1,000 lbs

Linear Actuators

TAL Series Industrial Linear Actuator
TAL Series Industrial Linear Actuator

VOLTAGE: 115 or 220/230 VAC (50 or 60 Hz)
SCREW TYPE: Acme Screw
STANDARD STROKE: 102 to 407 mm
SPEED: 10 to 11/9 mm/s
TEMPERATURE RANGE: -29ºC to 50ºC
ENVIRONMENTAL RATING: IP50 protection
TUBE RESTRAINING TORQUE: 9 Nm

Buy Now Free Application Analysis

Features and Benefits

FEATURES & BENEFITS:

  • Heavy duty design for long life in tough applications
  • Aluminum housing and outer tube
  • Stainless steel translating tube
  • Double clevis mounting
  • Load limiting ball detent clutch
  • Automatic reset thermal overload motor protection

Options

OPTIONS:

  • Potentiometer feedback (replaces limit switches)
  • Capacitor
  • Bellows boot

Specifications

TAL Series 1000 lb Product Specifications

Part Number Rated Loads Stroke Length Retracted Length Voltage Current Draw* Speed* Clutch Duty Cycle*
# (lbs) N in mm in mm (VAC) Hz Amp in/s mm/s Yes/No %
TAL10-1A20-4 (1000) 4448 4 102 12 305 (115) 60 4 0.43 10 Yes 17.5%
TAL10-1A20-8 (1000) 4448 8 203 16 406 (115) 60 4 0.43 10 Yes 17.5%
TAL10-1A20-12 (1000) 4448 12 305 20 508 (115) 60 4 0.43 10 Yes 17.5%
TAL10-1A20-18 (1000) 4448 18 407 24 610 (115) 60 4 0.43 10 Yes 17.5%
TAL10-2A20-4 (1000) 4448 4 102 12 305 (220/230) 50/60 2.0 / 2.5 0.45 / 0.37 11 / 9 Yes 17% / 14%
TAL10-2A20-8 (1000) 4448 8 203 16 406 (220/230) 50/60 2.0 / 2.5 0.45 / 0.37 11 / 9 Yes 17% / 14%
TAL10-2A20-12 (1000) 4448 12 305 20 508 (220/230) 50/60 2.0 / 2.5 0.45 / 0.37 11 / 9 Yes 17% / 14%
TAL10-2A20-18 (1000) 4448 18 407 24 610 (220/230) 50/60 2.0 / 2.5 0.45 / 0.37 11 / 9 Yes 17% / 14%

Clutch models are available upon request
Note: A capacitor is required for all AC volt motors.
Recommended part SK6405-7-15 (50 MFD) 115Vac and SK6405-7-14 (15 MFD) 230Vac
* At Rated Load

Models

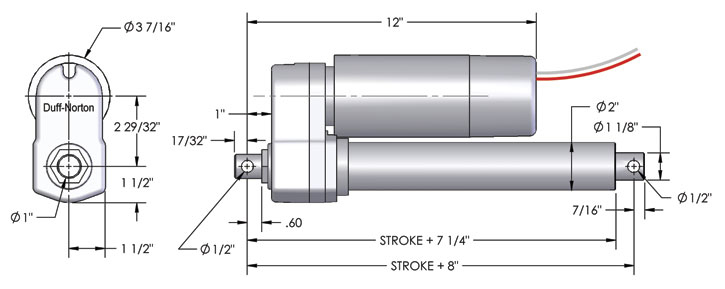

TAL Series Dimensions

TAL Series Dimensions

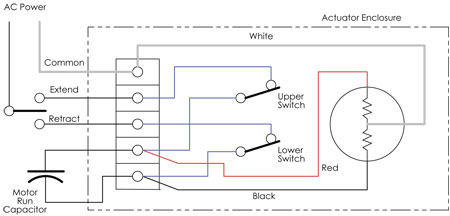

TAL Series Wiring Diagram

TAL Series Wiring Diagram
