SPD Series - 1,500 lbs
Linear Actuators
VOLTAGE: 12 VDC
SCREW TYPE: Acme ScrewSTANDARD STROKE: 3 to 18 in (76 to 457 mm)
TEMPERATURE RANGE: 15ºF to 120ºF (-10ºC to 50ºC)
TUBE RESTRAINING TORQUE: 215 in-lbf (24.2 Nm)
ENVIRONMENTAL RATING: IP50 protection standard (IP52 optional)
Features and Benefits
FEATURES & BENEFITS:
- Heavy duty design for long life in tough applications
- Bi-directional spring brake
- Aluminum housing and outer tube
- Steel translating tube – zinc chromate plated
- Double clevis mounting
- Internal adjustable limit switches (LSPD Series)
Options
OPTIONS:
- Potentiometer
- Weather resistant sealant – IP52
- Bellows boot
- Trunnion mounting
- Threaded end
Specifications
| SPD Series 1500 lb Product Specifications | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Part Number | Rated Loads | Stroke Length | Retracted Length | Voltage | Current Draw* | Speed* | Clutch | Duty Cycle* | |||
| # | (lbs) | in | mm | in | mm | vdc | amp | in/s | mm/s | Y/N | % |
| LSPD6415-3 | (1500) 6672 | 3 | 76 | 17.1 | 434 | 12 | 27 | 0.43 | 11 | Yes | 27% |
| LSPD6415-6 | (1500) 6672 | 6 | 152 | 20.1 | 511 | 12 | 27 | 0.43 | 11 | Yes | 27% |
| LSPD6415-12 | (1500) 6672 | 12 | 305 | 26.1 | 663 | 12 | 27 | 0.43 | 11 | Yes | 27% |
| LSPD6415-18 | (1500) 6672 | 18 | 457 | 32.1 | 815 | 12 | 27 | 0.43 | 11 | Yes | 27% |
| LSPD6415-24 | (1500) 6672 | 24 | 610 | 38.1 | 968 | 12 | 27 | 0.43 | 11 | Yes | 27% |
| LSPD6415-30 | (1500) 6672 | 30 | 762 | 50.1 | 1273 | 12 | 27 | 0.43 | 11 | Yes | 27% |
| LSPD6415-36 | (1500) 6672 | 36 | 915 | 56.1 | 1425 | 12 | 27 | 0.43 | 11 | Yes | 27% |
| * At Rated Load | |||||||||||
Models

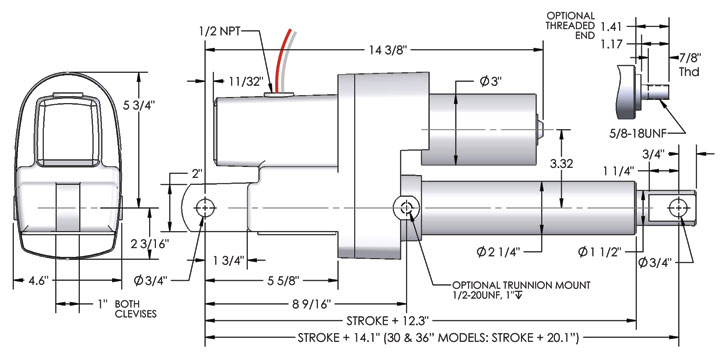

SPD Series Dimensions |
|---|

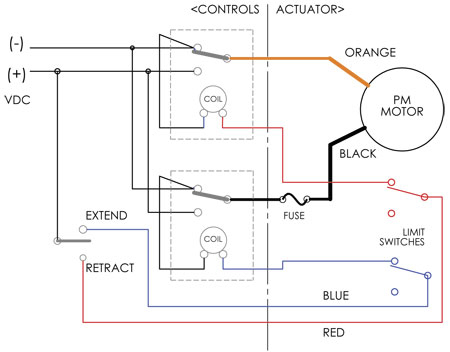

SPD Series Wiring Diagram |
|---|
| Note: (2) relays are required for DC limit switch models |
