LT Series - 27 to 225 lbs

The LT Series is a type of electric actuator designed for heavy-duty applications that may be exposed to harsh environments. These actuators are built to withstand challenging conditions.

Free Application Analysis

Catalogs

Product Sheet

Browse All Documents

Need Assistance?

Not sure if this is the right product for your application, or need a custom solution? Contact us today for help from an expert.

Features and Benefits

Safety
Internal limit switches safely stop operation at fully retracted and fully extended positions
Strength
Improved strength from zinc die cast housing
Corrosion Resistance
Aluminum outer tube
Rotation Prevention
No restraining torque required due to keyed translating tube
Smooth Operation
Polished aluminum translating tube
Environmental Protection
IP66 protection enables operation in rugged outdoor environments

Control LT Actuators’ motion through wired or wireless handsets
Sync multiple actuators using an AC controller
Choose from multiple add on features including: low speed motor, stainless steel translating tube, overload clutch, additional limit switches and feedback sensors
Positioning feedback via potentiometer
Design custom configurations with our application engineering team
Potentiometer, Hall effect, reed or optical feedback
Signal sending limit switch
Third limit switch
Stainless steel translating tube
Custom cable lengths
Wired or wireless handsets
AC power supply for multiple actuators
AC controller for synchronous operation

Documents

Brochures & Catalogs

[Catalogs] Linear Actuator Design Guide Catalog [Brochure] Duff-Norton Capabilities Brochure S1

Manuals & Supplements

[O&M Manual] LT Series O&M Manual

Product & Data Sheets

[Product Sheet] LT Series Product Sheet [Product Sheet] LT Series Specs and Part Numbers

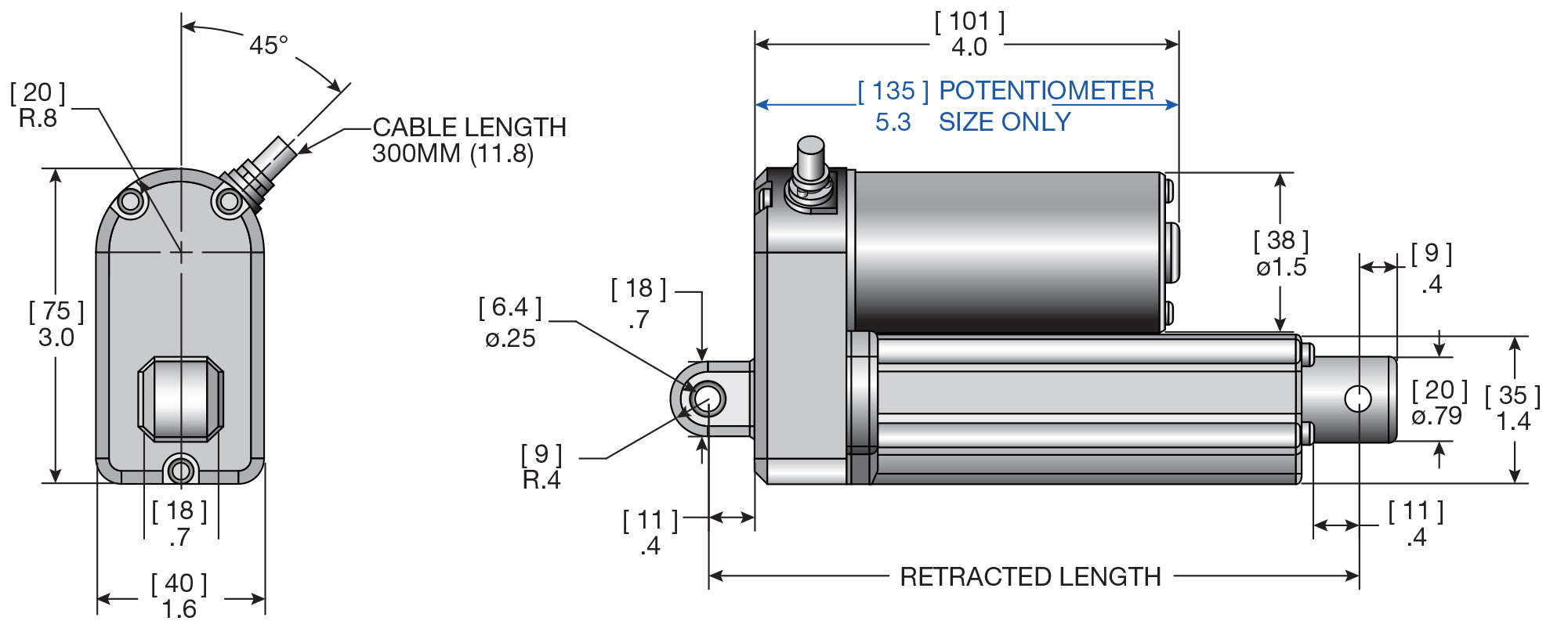

LT Series Dimensions

Linear Actuator System Controls
TC1 Control Box	LTEC	Features and benefits
		IP66 protection for outdoor applications Actuators with self-locking ACME screw Easy assembly with plug-and-play technology Temperature range: -13ºF (-25ºC) to 150ºF (65ºC LED for power supply indication on the controller Electronic Overload Protection (controller)

Linear Actuator System Controls

TC1 Control Box

LTEC

Features and benefits

IP66 protection for outdoor applications
Actuators with self-locking ACME screw
Easy assembly with plug-and-play technology
Temperature range: -13ºF (-25ºC) to 150ºF (65ºC
LED for power supply indication on the controller
Electronic Overload Protection (controller)

Synchronized Linear Actuator systems
The Duff-Norton linear actuator system will allow you to synchronize two linear actuators and control up to another two linear actuators independently. A Duff-Norton linear actuator system includes linear actuators, a controller and a hand set for operation. System applications can include agricultural machinery, industrial automation and outdoor power equipment.
Two Synchronized	Two Synchronized - One Independent	Two Synchronized - Two Independent
Part No. TH1-121-2016S	Part No. TH1-321-2016S	Part No. TH1-421-2016S

Model Number	Description	Feature	Feature	Other
See LT models	Actuator	24 VDC models only	Hall Sensor models only (add H suffix to part number)	any capacity or stroke length
TC1-2241-1221	Controller	120 VAC power in - 82" cord	24 VDC power out	1 per system
NA	Actuator Extension Cable 40"	NA	NA	NA
See image above	Handset	partial coiled wire	extends to approx. 7 foot length	1 per system
Please do not exceed 10% of 2 minutes continuous use duty cycle with these systems. Exceeding these rates might result in a temporary suspension of service. The system should operate again after a brief cooling period. For synchronized operation please select the Hall Sensor models only. Models with no feedback, or the potentiometer may be used for independent operation, and will require the LTEC kit.

Linear Actuators Controlled Independently

The Duff-Norton linear actuator system will allow you to control up to four linear actuators independently. A Duff-Norton linear actuator system includes linear actuators, a controller and a hand set for operation. System applications can include agricultural machinery, industrial automation and outdoor power equipment.

One Independent	Two Independent	Three Independent	Four Independent
Part No. TH1-121-2016	Part No. TH1-221-2016	Part No. TH1-321-2016	Part No. TH1-421-2016

Click here to download a PDF with larger images.

Model Number	Description	Feature	Feature	Other
See LT models	Actuator	24 VDC models only	non-feedback models only	any capacity or stroke length
TC1-2241-1221	Controller	120 VAC power in - 82" cord	24 VDC power out	1 per system
LTEC	Actuator Extension Cable	40" approx length	2 prong terminal and 6 pin round connector ends	1 per actuator
See image above	Handset	partial coiled wire	extends to approx. 7 foot length	1 per system

Please do not exceed 10% of 2 minutes continuous use duty cycle with these systems. Exceeding these rates might result in a temporary suspension of service. The system should operate again after a brief cooling period. For synchronized operation please select the Hall Sensor models only. Models with no feedback, or the potentiometer may be used for independent operation, and will require the LTEC kit.
