VOLTAGE: 115 or 220 VAC (50 or 60 Hz)
SCREW TYPE: Acme Screw
SPEED: 0.6 to 1.4 in/s (15 to 35 mm/s)
TEMPERATURE RANGE: 25ºF to 120ºF (-4ºC to 50ºC)
ENVIRONMENTAL RATING: IP50 protection standard (IP52 optional)
TUBE RESTRAINING TORQUE: 30 in-lbf (3.4 Nm)
Wide range of capacities and voltages for integration into a variety of applications
Heavy duty design for long life in tough environments
Aluminum housing and outer tube
Precise and repeatable positioning with internal, adjustable limit switches
Automatic reset thermal overload motor protection
Reduces back driving and stopping distance
Available with experienced Application Engineering Team
HSPB Series Product Specifications |
||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Part Number | Rated Loads | Stroke Length | Retracted Length | Voltage | Current Draw* | Speed* | Duty Cycle* | |||
| # | (lbs) N | in | mm | in | mm | VAC | Amp | in/s | mm/s | % |
| SPB3405-3 | (250) 1112 | 3 | 76 | 10 | 254 | 115 | 1.9 | 0.7 | 18 | 23% |
| SPB3405-6 | (250) 1112 | 6 | 152 | 13 | 330 | 115 | 1.9 | 0.7 | 18 | 23% |
| SPB3405-12 | (250) 1112 | 12 | 304 | 19 | 482 | 115 | 1.9 | 0.7 | 18 | 23% |
| SPB3405-18 | (250) 1112 | 18 | 457 | 25 | 635 | 115 | 1.9 | 0.7 | 18 | 23% |
| SPB4405-3 | (250) 1112 | 3 | 76 | 11.25 | 254 | 115 | 1 | 0.6 | 15 | 21% |
| SPB4405-6 | (250) 1112 | 6 | 152 | 14.25 | 330 | 115 | 1 | 0.6 | 15 | 21% |
| SPB4405-12 | (250) 1112 | 12 | 304 | 20.25 | 482 | 115 | 1 | 0.6 | 15 | 21% |
| SPB4405-18 | (250) 1112 | 18 | 457 | 26.25 | 635 | 115 | 1 | 0.6 | 15 | 21% |
| HSPB3405-3 | (250) 1112 | 3 | 76 | 11.25 | 254 | 115 | 5.1 | 1.4 | 36 | 11% |
| HSPB3405-6 | (250) 1112 | 6 | 152 | 14.25 | 330 | 115 | 5.1 | 1.4 | 36 | 11% |
| HSPB3405-12 | (250) 1112 | 12 | 304 | 20.25 | 482 | 115 | 5.1 | 1.4 | 36 | 11% |
| HSPB3405-18 | (250) 1112 | 18 | 457 | 26.25 | 635 | 115 | 5.1 | 1.4 | 36 | 11% |
|
Note: For all AC motors, a capacitor is required. The capacitor can be supplied the customer or Duff-Norton |
||||||||||

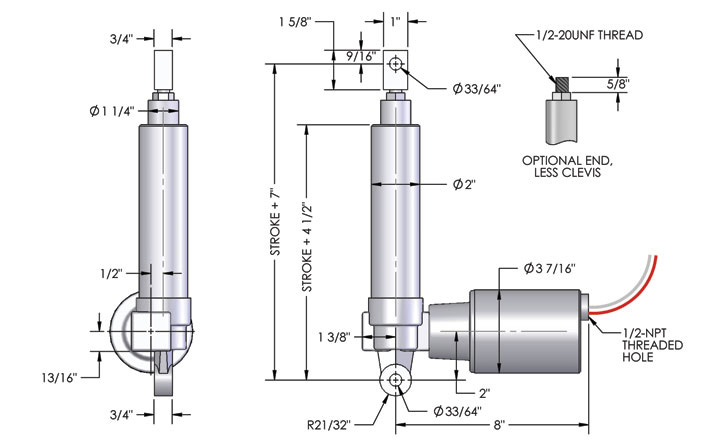

HSPB Series Dimensions |
|---|

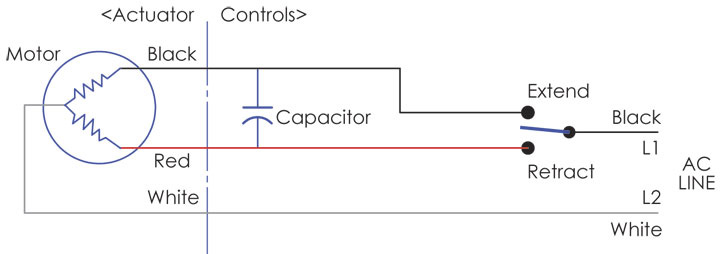

HSPB Series Wiring Diagram |
|---|
