HMPD Series w/Clutch - 250 lbs

The HMPD Series 250 lb. capacity with clutch offers a balance of strength and safety features for industrial applications. The clutch prevents damage to the actuator and machinery by slipping when the load exceeds a pre-set limit. The clutch can also provide end-of-travel protection by holding the load securely, even if the clutch slips.

Free Application Analysis

Documents

Catalogs
Product Sheet
Browse All Documents

Need Assistance?

Not sure if this is the right product for your application, or need a custom solution? Contact us today for help from an expert.

Features and Benefits

  • Versatile Design
    Wide range of capacities and voltages for integration into a variety of applications
  • Durable
    Heavy duty design for long life in tough environments
  • Corrosion Resistant
    Aluminum housing and outer tube
  • Precise Positioning
    Precise and repeatable positioning with internal, adjustable limit switches
  • Overload Protection
    Automatic reset thermal overload motor protection
  • Mechanical Braking System
    Reduces back driving and stopping distance
  • Custom Solutions
    Available with experienced Application Engineering Team

Optional Features

  • Stainless steel construction
  • Potentiometer for precise position feedback
  • Standard double clevis mounting with options for trunnion, and threaded ends
  • Weather resistant sealant for IP52 rating
  • Bellows boot protection

Documents

Brochures & Catalogs

[Catalogs] Linear Actuator Design Guide Catalog [Brochure] Duff-Norton Capabilities Brochure S1

Manuals & Supplements

[Technical Bulletin] Linear Actuator Quick Reference Guide

Product & Data Sheets

[Product Sheet] HMPB w/Clutch Product Sheet [Product Sheet] HMPD w/Clutch Specs and Part Numbers

Drawings & Diagrams

[Dimension Input Drawing] HMPD w/Clutch Dimensional Drawing

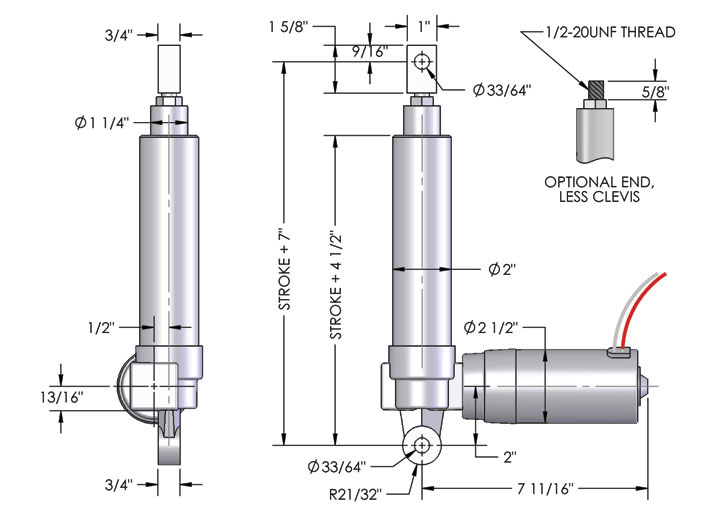

HMPD Series with Clutch Dimensions

HMPD Series with Clutch Dimensions

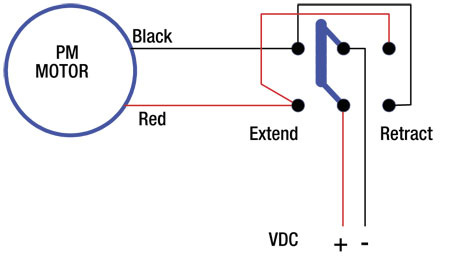

HMPD Series with Clutch Wiring Diagram

HMPD Series with Clutch Wiring Diagram
