HMPB 500 Series Industrial Linear Actuator
HMPB 500 Series Industrial Linear Actuator

HMPB Series - 500 lbs

Linear Actuators

HMPB 500 Series Industrial Linear Actuator
HMPB 500 Series Industrial Linear Actuator

VOLTAGE: 115 or 220 VAC (50 or 60 Hz)
SCREW TYPE: Acme Screw
STANDARD STROKE: 3 to 18 in (76 to 457 mm)
SPEED: 0.6 to 1.33 in/s (15 to 34 mm/s)
TEMPERATURE RANGE: 25ºF to 120ºF (-4ºC to 50ºC)
ENVIRONMENTAL RATING: IP50 protection standard (IP52 optional)

Free Application Analysis
HMPS Product Sheet - 500 lb Duff-Norton Linear Actuator Design Guide HMPB Dimensional Drawing - 500 lb HMPB OandM Manual - 500 HMPB Specs & Part Numbers - 500 lb Linear Actuator Quick Reference Guide Duff-Norton Product Capabilities Brochure

Features and Benefits

FEATURES & BENEFITS

HMPB Series - 500 lb Linear Actuator

VERSATILE DESIGN

Wide range of capacities and voltages for integration into a variety of applications

DURABLE

Heavy duty design for long life in tough environments

CORROSION RESISTANT

Aluminum housing and outer tube

PRECISE POSITIONING

Precise and repeatable positioning with internal, adjustable limit switches

OVERLOAD PROTECTION

Automatic reset thermal overload motor protection

MECHANICAL BRAKING SYSTEM

Reduce back driving and stopping distance

CUSTOM SOLUTIONS

Available with experienced Application Engineering Team

Options

OPTIONS:

  • Stainless steel construction
  • Potentiometer for precise position feedback
  • Standard double clevis mounting with options for trunnion, and threaded ends
  • Weather resistant sealant for IP52 rating
  • Bellows boot protection
  • Load limiting friction disc clutch

Specifications
HMPB 500 lb Series Product Specification
Part Number Rated Loads Stroke Length Retracted Length Voltage Current Draw* Speed* Limit Switch Duty Cycle* POT
# (lbs) N In mm In mm (VAC) Hz Amp in/s mm/s Yes/No % Yes/No
MPB6905-3 (500) 2244 3 76 11.25 286 (115) 60 2 0.6 15 Yes 19% No
MPB6905-6 (500) 2244 6 152.4 14.25 362 (115) 60 2 0.6 15 Yes 19% No
MPB6905-12 (500) 2244 12 304.8 20.25 514 (115) 60 2 0.6 15 Yes 19% No
MPB6905-18 (500) 2244 18 457.2 26.25 667 (115) 60 2 0.6 15 Yes 19% No
MPB7905-3 (500) 2244 3 76 11.25 286 (115) 60 1 0.6 15 Yes 22% No
MPB7905-6 (500) 2244 6 152.4 14.25 362 (115) 60 1 0.6 15 Yes 22% No
MPB7905-12 (500) 2244 12 304.8 20.25 514 (115) 60 1 0.6 15 Yes 22% No
MPB7905-18 (500) 2244 18 457.2 26.25 667 (115) 60 1 0.6 15 Yes 22% No
HMPB6905-3 (500) 2244 3 76 11.25 286 (115) 60 5.5 1.33 34 Yes 11% No
HMPB6905-6 (500) 2244 6 152.4 14.25 362 (115) 60 5.5 1.33 34 Yes 11% No
HMPB6905-12 (500) 2244 12 304.8 20.25 514 (115) 60 5.5 1.33 34 Yes 11% No
HMPB6905-18 (500) 2244 18 457.2 26.25 667 (115) 60 5.5 1.33 34 Yes 11% No
PHMPB6905-3 (500) 2244 3 76 11.25 286 (115) 60 5.5 1.33 34 Yes 11% Yes
PHMPB6905-6 (500) 2244 6 152.4 14.25 362 (115) 60 5.5 1.33 34 Yes 11% Yes
PHMPB6905-12 (500) 2244 12 304.8 20.25 514 (115) 60 5.5 1.33 34 Yes 11% Yes
PHMPB6905-18 (500) 2244 18 457.2 26.25 667 (115) 60 5.5 1.33 34 Yes 11% Yes
Clutch models available upon request
Note: A capacitor is required for all AC volt motors. Recommended part SK6405-7-3 (64-72 MFD)
* At Rated Load

Models

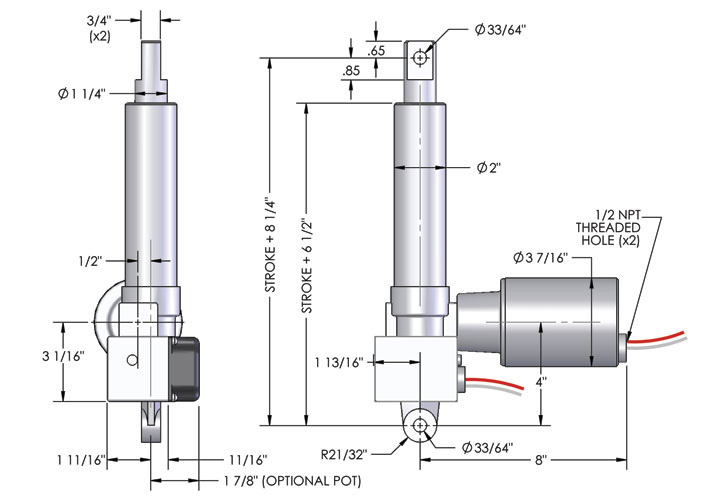

HMPB 500 lb. Series Dimensions

HMPB-500 Series Dimensions

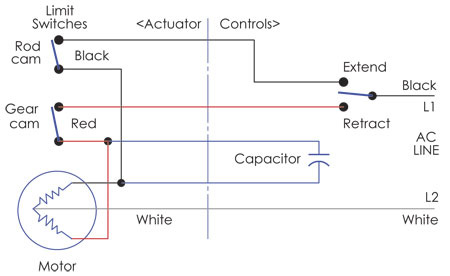

HMPB 500 lb. Series Wiring Diagram

HMPB-500 Series Wiring Diagram
