CMLA D Series 2000 lbs Linear Actuator

FEATURES AND BENEFITS

Fully rated at 2000 lbs to handle dynamic loads both in compression and tension

Lifting speeds up to 2 in/sec at rated load

3.9 in, 5.9 in, 11.8 in, 17.7 in, 23.6 in, and 29.5 in

Safety clutch aids in the prevention of damage due to accidental overload conditions

230/460 3-phase motor

3-phase AC brake

Position feedback potentiometer

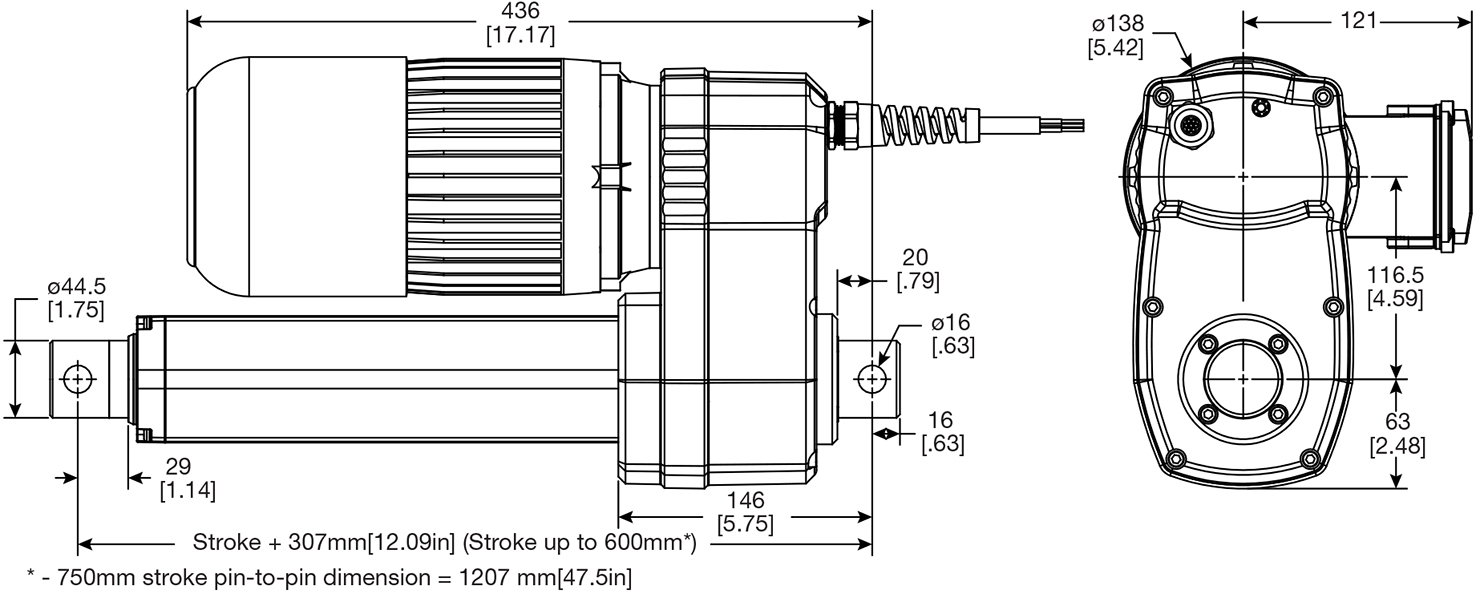

CMLA D Series 2000 lb Product Specifications
Capacitor Model	Motor	Max. Dynamic Load	Max. Static Load	Screw	Gear	Motor Power	Amperage	Lifting Speed	Duty Cycle	Capacitor Rating
#	Type	(lbs) N	(lbs) N	Type	Ratio	Volts	Amps	(in/s) mm/s	(in/hr) m/hr	mdf
192002122	AC	(1500) 6700	(2250) 10,008	Trapezoid	17.2	115	8	(0.74) 18.8	(500) 12.7	90
192002121	AC	(1500) 6700	(2250) 10,008	Trapezoid	17.2	230	4	(0.74) 18.8	(500) 12.7	25
192002122	AC	(1500) 6700	(2250) 10,008	Ball	14.0	115	8.3	(1.45) 36.8	(900) 22.9	90
192002121	AC	(1500) 6700	(2250) 10,008	Ball	14.0	230	4.4	(1.45) 36.8	(900) 22.9	25
192002122	AC	(750)§ 3336	(2250) 10,008	Ball	6.9	115	8.3	(2.9) 73.7	(1800) 45.8	90
192002121	AC	(750)§ 3336	(2250) 10,008	Ball	6.9	230	4.4	(2.9) 73.7	(1800) 45.8	25
§Double Speed - Lower ratio reduces rated load to 750 lbs. Notes: 1. The correct capacitor mfd should be used for each model or the cylinder will not perform as rated. 2. Order Hard Start Kit 192036494 for applications where high starting torque is required (low temperature, high starting load)
