Yale YK Wire Rope Hoist

Electric Wire Rope Hoists

Yale YK hoists offer the industry-leading technology and safety you need for your lifting applications in a compact, easy-to-maintain design. Precision engineered, these hoists are built for reliable operation, high efficiency, and long service life. The modular hoist system allows you to configure the hoist to meet the exact needs of your application. Whether you need a double beam mounting model or a low height monorail model, there is a YK hoist to meet your needs.

Yale YK & Shaw-Box SK Wiring Diagrams

Yale YK/Shaw-Box SK Manual v.A-E Frame Rev AF Yale YK and Shaw-Box SK Tandem Electric Wire Rope Hoists Brochure Yale YK/Shaw-Box SK Manual v.F-G Frame Rev AC Yale YK CSA Brochure-Canada Standard Procedure for Storage of ElectricAir Hoists LS Standard VFD Motor Manual Supplement YK SK Comparison Chart YK Standard VFD Control Distributor Brochure Yale YK Brochure YK SK Wire Rope Hoist VFD Brochure Wire Rope Hoist - Standard VFD Limit Switch Manual YK SK Spare Parts List - YKA and SKA YK SK Spare Parts List - YKB and SKB YK SK Spare Parts List - YKC and SKC YK SK Spare Parts List - YKD YKE SKD and SKE

FEATURES AND BENEFITS

Yale YK Wire Rope Hoist

WIDE RANGE OF CAPACITIES AND LIFTS

Monorail units up to 30 tons and top-running, double-girder units up to 55 tons. Standard lifts up to 131 ft. Metric rated models also available.

EXTENSIVE SAFETY FEATURES

Standard safety features include paddle limit switch, adjustable geared limit switch, motor temperature control, and overload protection.

FLEXIBLE CONFIGURATIONS

Hoists can be configured to your unique application needs. Available in 5 frame sizes with 16 load capacity variants.

SMOOTH OPERATION

With an integrated motor management module and flywheel trolley motors, the SK features extremely smooth starting and braking with starts and stops for extended brake life.

COMPACT DESIGN

Exceptionally short approach allows for optimal use of work area when space is limited. Paddle limit switch allows for lowest headroom possible while maintaining safe operation. Low-headroom monorail units are extremely compact due to U-shape design.

RELIABLE PERFORMANCE IN HEAVY-DUTY APPLICATIONS

Hoists available with H3, H4, and H4+ duty cycles.

LOW MAINTENANCE

High-quality components designed for safety and longevity, providing you with minimal downtime and a low total cost of ownership. Local availability of common spare parts means that your products can be serviced quickly, helping to reduce downtime.

COMPLIANCE WITH INDUSTRY STANDARDS

Hoists meet CMAA and HMI standards. CSA labeled. Explosion-protected models available in compliance with NEC guidelines.

BASE-MOUNT

Can be used as stationary hoisting or towing equipment, for example in systems manufacturing. The rope lead-off angle, the hoist mounting, and the mounting position of the hoist motor can be adjusted as needed. Available for 1-55 ton capacities.

TOP-RUNNING, DOUBLE-GIRDER

Extremely compact with minimal hook approach and headroom dimensions. Flexible design ensures all four wheels are in contact with the girder. Available for 1-55 ton capacities.

Control Options

2-SPEED CONTROL

2-speed models come standard with 6:1 turndown, and the control panel is mounted to the gearbox.

STANDARD VFD

Standard VFD hoist and flux vector hoist configurations come standard with controls housed in a separate NEMA-rated enclosure mounted to underhung hoists. The enclosure is shipped loose for the greatest flexibility in top-running double girder and base-mount configurations. Standard VFD hoists are also equipped with an encoder mounted to the gearbox for direction and overspeed detection, improving the safe operation of your wire rope hoist.

ADVANCED VFD

Advanced VFD configurations offer the greatest positional accuracy. Using variable speed control, micro-positioning capabilities enable precision load control while decreasing load bounce and swing. In addition, the 10:1 speed control gives operators the ability to “float” the load with full torque at 0 rpm.

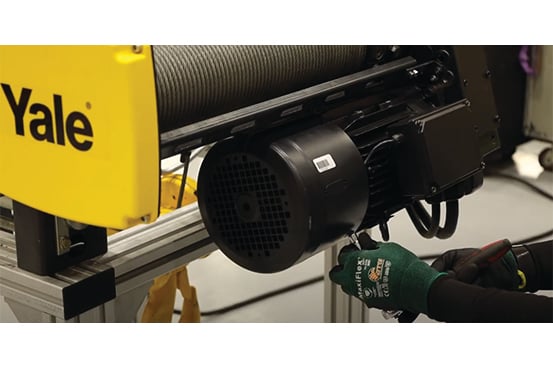

Changing Brake Torque Springs on a Yale YK Wire Rope Hoist

Best-in-class Yale YK electric wire rope hoists, now available with standard VFD control that includes overspeed and direction detection, offer increased lifetime of wearable components, like motors, wire rope, and brakes. But when you do need to change brake components, like the torque springs, the process is simple.

More Details on the YK

Brake Torque Springs YK Video Thumbnail Opti

Play Video

OPTIONS

PUSHBUTTON STATION
TOWING ARM - Available for power supply with adjustable height and length.
TRAVEL LIMIT SWITCH - Standard version includes limit switching in both directions, switching from fast/slow, and IP65 or NEMA 4/4X rating. Wired and mounted to the hoist.

IMPULSE Series 5 CAD Drawings

Download the Drawings
