Festoon trolleys are mobile supports for electrical cables or pneumatic and hydraulic lines that allow the cable to move with a hoist, trolley, or other mobile equipment. Festoon trolleys come in a variety of sizes and configurations to handle round or flat cables and hoses.

CraneXpress - Single Girder Bridge with Rigid End Truck

Festoon Trolleys: ETA-4/5 Trolleys | ETA-8 Trolleys

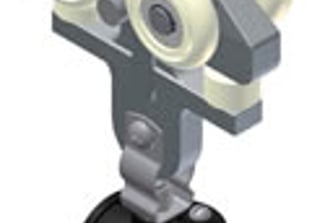

ETA-4/5 Trolley Features*

High tensile almag alloy frame
1.8" Nylon glass reinforced wheels, with permanently sealed precision ball bearings
High impact nylon guide rollers with dual race ball bearings for smooth, quiet operation
Operates within enclosed-rail free from obstructing material
Dielectrically insulated
Low inertia less than 1% of load
Operating temperature range: +32 degrees to +212 degrees F

*excludes cable trolley and festoon slider

Part # 20150 Festoon Trolley 100lb/45kg Dimensions Exploded View	Part # 20155 Small Saddle Trolley Dimensions	Part # 20160 Large Saddle Trolley Dimensions
Part # 20165 Flatwire Saddle Trolley Dimensions	Part # 20170 Large Sling Trolley Dimensions	Part # 20175 Small Sling Trolley Dimensions
Part # 20180 UII Saddle Trolley Dimensions	Part # 20185 UII Saddle Trolley with 12" Saddle Dimensions	Part # 78184 Cable Trolley with Small Saddle Dimensions
Part # 78190 Cable Trolley with Large Saddle Dimensions	Part # 78170 Cable Trolley with Flatwire Saddle Dimensions	Part # 78260 Festoon Slider Dimensions

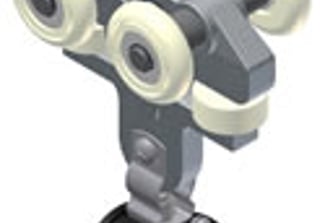

ETA-8 Trolley Features*

High tensile almag alloy frame
1.8" Nylon glass reinforced wheels, with permanently sealed precision ball bearings
High impact nylon guide rollers with dual race ball bearings for smooth, quiet operations
Operates within enclosed-rail free from obstructing material
Dielectrically insulated
Low inertia less than 1% of load
Operating temperature range: +32 degrees to +212 degrees F

*excludes cable trolley and festoon slider

Part # 20090 Festoon Trolley 100lb/1.5lbs Dimensions Exploded View	Part # 20091 Small Saddle Trolley Dimensions	Part # 20092 Large Saddle Trolley Dimensions
Part # 20093 Flatwire Saddle Trolley Dimensions	Part # 20094 Large Sling Trolley Dimensions	Part # 20095 Small Sling Trolley Dimensions
Part # 20096 UII Saddle Trolley Dimensions	Part # 20097 Festoon Trolley with 12" Saddle Dimensions	Part # 78184 Cable Trolley with Small Saddle Dimensions
Part # 78190 Cable Trolley with Large Saddle Dimensions	Part # 78170 Cable Trolley with Flatwire Saddle Dimensions	Part # 78260 Festoon Slider Dimensions
