VOLTAGE: 12 or 24 VDC
SCREW TYPE: Acme Screw
STANDARD STROKE: 2 to 12 in (50 to 304 mm)
SPEED: 0.4 to 0.75 in/s (10 to 19 mm/s)
TEMPERATURE RANGE: 25ºF to 120ºF (-4C to 50C)
ENVIRONMENTAL RATING: IP50 protection standard

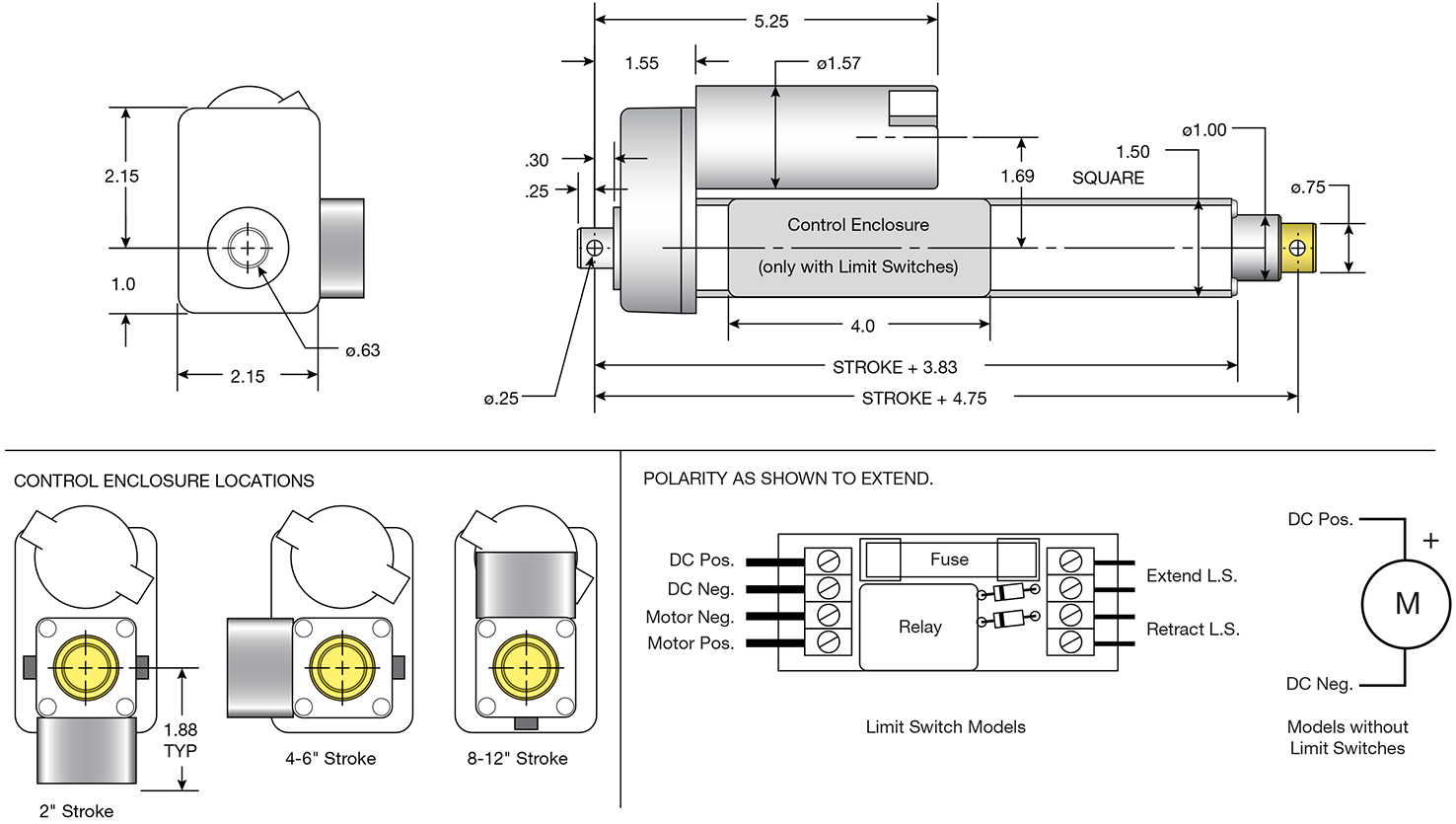

TMD02 Series Dimensions and Wiring Diagram |
|---|
Load Capacity:
250 lbs.
Stroke Lengths:
3, 6, 12, 18 in.
Load Capacity:
250 lbs.
Stroke Lengths:
2, 4, 6, 8, 10, 12 in.
Load Capacity:
250 lbs.
Stroke Lengths:
3, 6, 12, 18 in.
Load Capacity:
250 lbs.
Stroke Lengths:
3, 6, 12, 18 in.
