VOLTAGE: 115 or 220 VAC (50 or 60 Hz)
SCREW TYPE: Acme Screw
SPEED: 0.6 to 1.4 in/s (15 to 35 mm/s)
TEMPERATURE RANGE: 25ºF to 120ºF (-4ºC to 50ºC)
ENVIRONMENTAL RATING: IP50 protection standard (IP52 optional)
TUBE RESTRAINING TORQUE: 30 in-lbf (3.4 Nm)
HSPB Series Product Specifications |
||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Part Number | Rated Loads | Stroke Length | Retracted Length | Voltage | Current Draw* | Speed* | Duty Cycle* | |||
| # | (lbs) N | in | mm | in | mm | VAC | Amp | in/s | mm/s | % |
| SPB3405-3 | (250) 1112 | 3 | 76 | 10 | 254 | 115 | 1.9 | 0.7 | 18 | 23% |
| SPB3405-6 | (250) 1112 | 6 | 152 | 13 | 330 | 115 | 1.9 | 0.7 | 18 | 23% |
| SPB3405-12 | (250) 1112 | 12 | 304 | 19 | 482 | 115 | 1.9 | 0.7 | 18 | 23% |
| SPB3405-18 | (250) 1112 | 18 | 457 | 25 | 635 | 115 | 1.9 | 0.7 | 18 | 23% |
| SPB4405-3 | (250) 1112 | 3 | 76 | 11.25 | 254 | 115 | 1 | 0.6 | 15 | 21% |
| SPB4405-6 | (250) 1112 | 6 | 152 | 14.25 | 330 | 115 | 1 | 0.6 | 15 | 21% |
| SPB4405-12 | (250) 1112 | 12 | 304 | 20.25 | 482 | 115 | 1 | 0.6 | 15 | 21% |
| SPB4405-18 | (250) 1112 | 18 | 457 | 26.25 | 635 | 115 | 1 | 0.6 | 15 | 21% |
| HSPB3405-3 | (250) 1112 | 3 | 76 | 11.25 | 254 | 115 | 5.1 | 1.4 | 36 | 11% |
| HSPB3405-6 | (250) 1112 | 6 | 152 | 14.25 | 330 | 115 | 5.1 | 1.4 | 36 | 11% |
| HSPB3405-12 | (250) 1112 | 12 | 304 | 20.25 | 482 | 115 | 5.1 | 1.4 | 36 | 11% |
| HSPB3405-18 | (250) 1112 | 18 | 457 | 26.25 | 635 | 115 | 5.1 | 1.4 | 36 | 11% |
|
Note: For all AC motors, a capacitor is required. The capacitor can be supplied the customer or Duff-Norton |
||||||||||

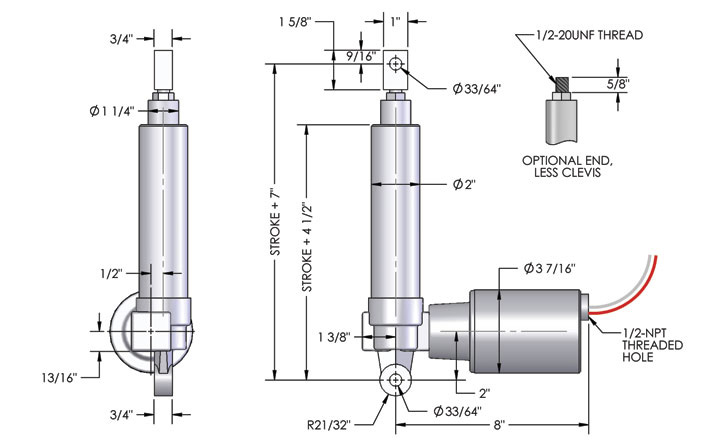

HSPB Series Dimensions |
|---|

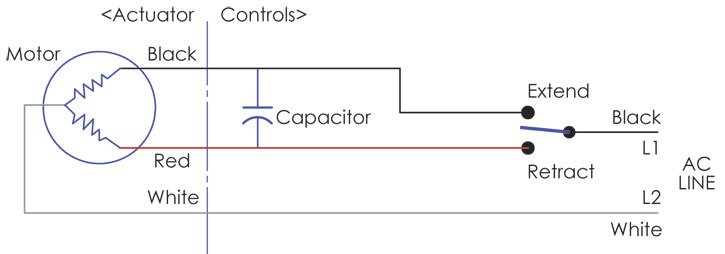

HSPB Series Wiring Diagram |
|---|
Load Capacity:
500 lbs.
Stroke Lengths:
3, 6, 12, 18 in.
Load Capacity:
500 lbs.
Stroke Lengths:
3, 6, 12, 18 in.
Load Capacity:
500 lbs.
Stroke Lengths:
3, 6, 12, 18 in.
Load Capacity:
500 lbs.
Stroke Lengths:
4, 8, 12, 18 in.
