HMPD Series w/Limit Switch - 250 lbs
Linear Actuators
VOLTAGE: 12 VDC
SCREW TYPE: Acme Screw
STANDARD STROKE: 3 to 18 in (76 to 457 mm)
SPEED: 1 to 2 in/s (25 to 50 mm/s)
TEMPERATURE RANGE: 25ºF to 120ºF (-4ºC to 50ºC)
ENVIRONMENTAL RATING: IP50 Protection (IP52 optional)
Specifications
HMPD with Limit Switch Series Specifications |
|||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Part Number | Rated Loads | Stroke Length | Retracted Length | Voltage | Current Draw* | Speed* | Limit Switch | Duty Cycle* | |||
| # | (lbs) N | in | mm | in | mm | VDC | Amp | in/s | mm/s | Yes/No | % |
| MPD3905-3 | (250) 1112 | 3 | 76 | 11.25 | 285 | 12 VDC | 14 | 1 | 25 | Yes | 35% |
| MPD3905-6 | (250) 1112 | 6 | 152 | 14.25 | 362 | 12 VDC | 14 | 1 | 25 | Yes | 35% |
| MPD3905-12 | (250) 1112 | 12 | 304 | 20.25 | 514 | 12 VDC | 14< | 1 | 25 | Yes | 35% |
| MPD3905-18 | (250) 1112 | 18 | 457 | 26.25 | 666 | 12 VDC | 14 | 1 | 25 | Yes | 35% |
| MPD3904-3 | (250) 1112 | 3 | 76 | 11.25 | 285 | 12 VDC | 6 | 1.2 | 30 | Yes | 26% |
| MPD3904-6 | (250) 1112 | 6 | 152 | 14.25 | 362 | 12 VDC | 6 | 1.2 | 30 | Yes | 26% |
| MPD3904-12 | (250) 1112 | 12 | 304 | 20.25 | 514 | 12 VDC | 6 | 1.2 | 30 | Yes | 26% |
| MPD3904-18 | (250) 1112 | 18 | 457 | 26.25 | 666 | 12 VDC | 6 | 1.2 | 30 | Yes | 26% |
| HMPD3905-3 | (250) 1112 | 3 | 76 | 11.25 | 285 | 12 VDC | 28 | 2 | 50 | Yes | 15% |
| HMPD3905-3 | (250) 1112 | 6 | 152 | 14.25 | 362 | 12 VDC | 28 | 2 | 50 | Yes | 15% |
| HMPD3905-12 | (250) 1112 | 12 | 304 | 20.25 | 514 | 12 VDC | 28 | 2 | 50 | Yes | 15% |
| HMPD3905-18 | (250) 1112 | 18 | 457 | 26.25 | 666 | 12 VDC | 28 | 2 | 50 | Yes | 15% |
| * At Rated Load | |||||||||||
Models

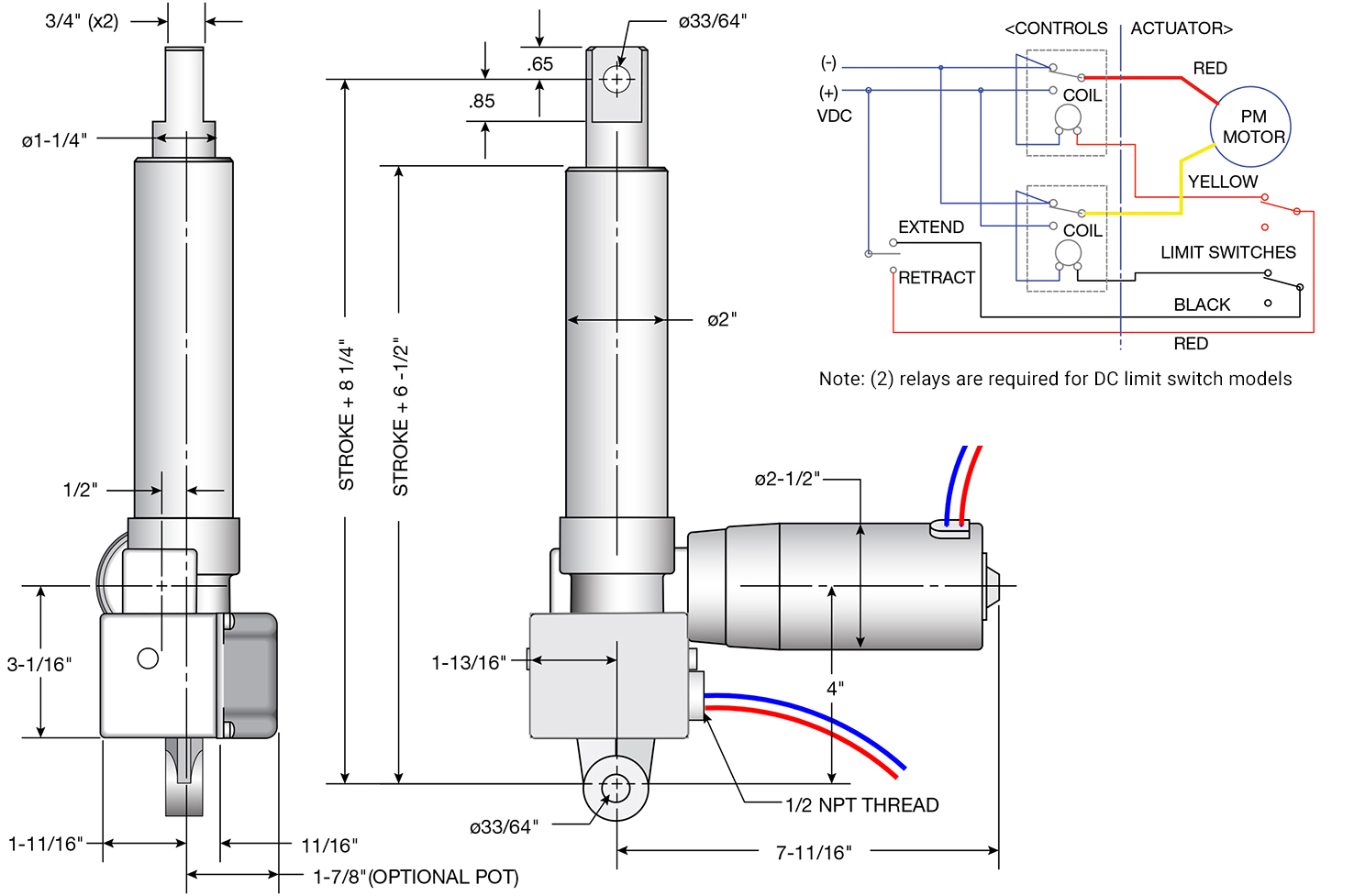

HMPD with Limit Switch Series Dimensions |
|---|
