Which Type of Chain Binder You Should Use for Load Securement
Transportation and Rail | Rigging | By Troy Raines | Oct 01, 2019
Being an engineer gives my outlook on life an odd slant. I frequently think of things in terms of simple machines and how they can make my life better. Where am I going with this and how do simple machines relate to chain binder selection? Let me explain.
Also known as a load binder, chain binders are tools used to tighten chain when securing a load for transport. There are two basic styles of chain binders – lever binders and ratchet binders. The method of tightening the binder is what differentiates the two.
A lever binder is made up of a simple machine, a lever, with a tension hook on each end. The lever is used to increase the force applied to a tie-down. The lever is hinged and takes up the slack by pulling on one end of the tension hook and will lock itself after a 180-degree rotation of the lever around the hinge. Some of the advantages of choosing a lever-type binder include:

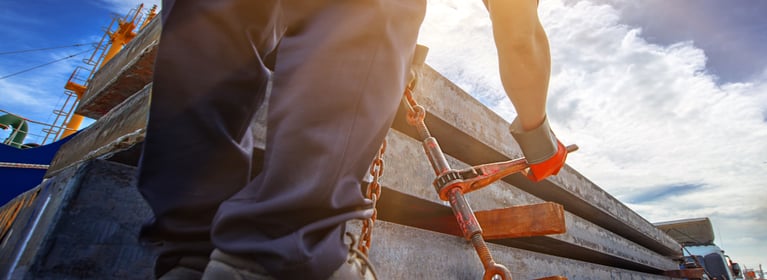

A ratchet binder uses two types of simple machines and has two tension hooks on each end and handle. The handle again serves as a lever plus there is the screw thread. Having both simple machines can multiply the force manually applied to the tie down assembly.
When using a ratchet binder, the lever and screw work together and increase the force manually applied to the tie-down assembly. The result is that it takes much less pulling force on the handle to apply tension than you would need with a lever binder.
Ratchets also allow for slower, steadier loading and unloading of forces. This reduces any undue stress or strain on your body. Since ratchet binders are designed with a gear, handle, pawl and end fittings, they will not store up as much energy in the handle as a lever binder will.
Another advantage of ratchet binders is that take-up is safer. The take-up distance of a ratchet binder is typically eight to ten inches – twice that of a lever binder. While take up with a ratchet binder may take a few extra minutes, it is more controlled and ultimately a safer process.
Both lever binders and ratchet binders work in a similar fashion and should be chosen based on the preference of the operator. As with any type of load securement gear, safe practices need to be followed, including:
WLL: 2,600 to 16,000 lbs.
