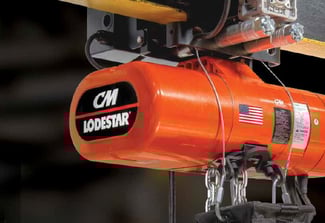

Lodestar XL Electric Chain Hoist

The CM Lodestar XL Electric Chain Hoists features a heavy-duty design with faster speeds, less reeving, and higher capacities than traditional hoists.

Standard Configurations

Spec Category 1: 1, 2, 3, 4
Spec Category 2: 5, 10, 15, 20
View Specifications

Features and Benefits

FEATURES AND BENEFITS:

CAPACITY
Lifting capacities up to 7-1/2 tons.

LIFTING SPEED

  • Increased lifting speeds throughout the line.
  • Maximum lifting speed of 30 feet per minute.

DOUBLE REEVED UNITS
3-5 ton lifting capacities.

DURABILITY AND LONG LIFE

  • Heavy-duty, multiple disc braking system.
  • Forged ten-pocket oblique-lay liftwheel for smooth chain operation, constant chain speed, and reduced chain wear.
  • Gearing operated in oil bath for increased lifting life and quiet operation.
  • Rated H-4, heavy-duty.
  • Standard overload protector.
  • Screw-type limit switches.
  • Thermally protected motor.
  • Factory tested at 125% of rated capacity.

MADE IN THE USA
